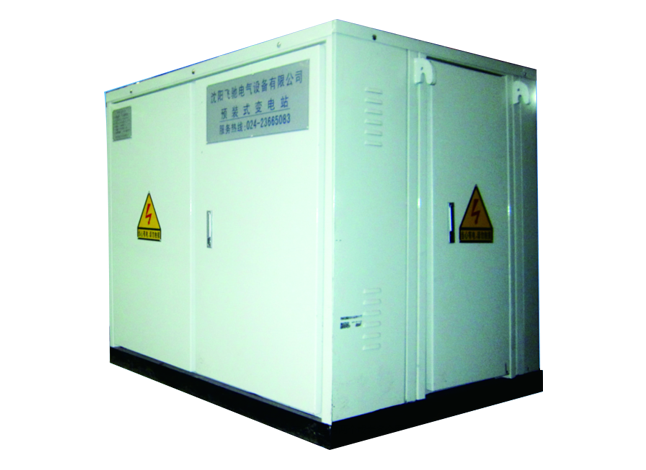

European box change

My company produces the European box voltage grade 6KV, 10kV, 24KV and 35KV. Box is mainly composed of four parts, high voltage switch cabinet, transformer, low voltage cabinet and a shell, wherein, shell material points: composite plate, stainless steel plate, composed of ordinary steel plate, galvanized plate, cement shell material. Power supply scheme with double transformer. There are a number of prominent features:
1) single channel ventilation and maintenance design.
2) switch cabinet level 10K.
3) high strength of the outer shell, cover with anti 10 wind design structure, shell rain ability.
4) coastal products can be designed anti-corrosion and anti riot design.
5) can design the air conditioning type, the interior whole decoration type pre installed substation.
6) can be used to dry transformer can also be used for oil immersed type structure.
7) stable and safe operation.

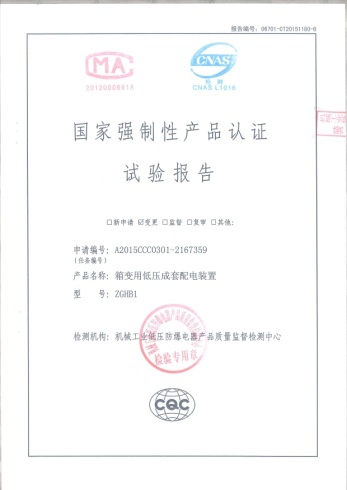

8) the product has a network of companies to prove.

Success Case +

Fushun Petrochemical comprehensive development of the real estate Limited by Share Ltd - East 24# plots residential power supply project Changbai County, the first batch of 10 kV and below distribution upgrading projects Jingyu County, the first batch of 10 thousand volts and the following distribution transformation and upgrading Zhangwu Wuhan industry real estate development Co. Ltd. Liuhe leisure area power supply engineering Ulanhot The Chinese people's Revolutionary Military Museum Chifeng glory house Dongzhou District, Fushun City, Dongzhou District Board of education, the new teaching building two new substations (substation part) power supply Fuxin Kang Tai Real Estate Development Co. Ltd. Benxi Institute of Electrical Engineering Composite Materials Co Ltd Building new 10KV substation and the ring network cabinet Transfer Project Fuxin Bo Xin electric power installation Co., Ltd. Huolinguole city Acer Electric Power Engineering Co. Ltd. South City shantytowns electric power Siping power company residential power supply facilities fees project framework bidding of equipment and materials Life school (Tianjin) Cci Capital Ltd 10KV power distribution project Chifeng Heng Ju Electric Power Co., Ltd. 10KV power distribution equipment transformation (Jilin 2012 1 batch) Fushun Wantong Real Estate Development Co. Ltd. - Dingxin international city district (public power substation) Benxi County Office (penggai Ying Bin Xiao Qu C) residential power supply engineering Jinma Building Real Estate Co. Ltd. 10KV new project

Product description：

1) single channel ventilation and maintenance design.

2) switch cabinet level 10K.

3) high strength of the outer shell, cover with anti 10 wind design structure, shell rain ability.

4) coastal products can be designed anti-corrosion and anti riot design.

5) can design the air conditioning type, the interior whole decoration type pre installed substation.

6) can be used to dry transformer can also be used for oil immersed type structure.

7) stable and safe operation.

8) the product has a network of companies to prove.

technical parameter

High pressure unit	project	Company	parameter
	Rated frequency	HZ	50
	Rated voltage	KV	6 10 35
	Maximum operating voltage	KV	6.9 12 40.5
	Rated current	A	400、630、1250
	Transfer current	A	1200-2000
	icw	KA	12.5 (2S or 4S), 16 (2S or 4S), 20 (2S or 4S)
	Rated peak withstand current	KA	31.5、40、50
	Power frequency withstand voltage - to ground and time / isolation fracture	KV	32/36 42/48 95/118
	Lightning strike - the ground and time / isolation fracture	KV	60/70 75/85 185/215
	Rated short circuit breaking current (current limiting fuse)	KA	31.5
	Open off transformer capacity	KVA	2500
	Rated voltage	KV	6、10、35
Transformer unit	Rated capacity	KVA	30-2500
	Tap range	%	±2*2.5%、±5%
	Linkage group		Yyn0、Dyn11
	Impedance voltage	%	4、4.5、6、8
	Rated voltage	V	220、380、690、800
Low voltage unit	Main circuit rated current	A	50-4000
	Branch current	A	5-800
	Rated short-time withstand current of main circuit	KA	15（1s）、30（1s）、50（1s）、65（1s）
	Rated peak withstand current of main circuit	KA	30、63、110
Shell	Protection level (conventional products)		High pressure chamber IP23; transformer room IP33; low pressure chamber IP33
	noise level	dB	≤50
	Temperature rise level		10K
